Foundation Grout High Speed Masonry Grout Pump Variable Output
Masonry Grout Pump
Structure of Masonry grout pump:
Masonry grout pump is mainly composed of motor, pump body, base, pump head, air chamber, pressure gauge, cleaning valve, pulley drive and other parts. The power generated by the motor is transmitted to the pump body through the belt, and the rotary motion of the crankshaft connecting rod changes into the linear reciprocating motion of the piston, so as to control the opening and closing of the steel ball in the pump head for suction and discharge.
Parameters of Masonry grout pump:
| Model | BW70/8 |
| Grouting (flowing) capacity | 75 L/MIN |
| Working pressure | 8 Mpa |
| Motor power | 11 kw |
| Inlet diameter | 64mm |
| Outlet diameter | 38mm |
| Number of cylinder | 2 |
| Cylinder diameter | 80 mm |
Working performance of masonry grout pump :
1.Because of full hydraulic pressure, small volume and light weight, it can be used in a wide range of construction.
2.The adjustable performance is better: within the design range, the pressure displacement of the pump can be arbitrarily adjusted. When the pressure exceeds the allowable pressure, the relief valve will automatically open and the cylinder and working cylinder will stop working, thus playing a safe role.
3.In coal mines and other flammable and explosive construction sites, the series of hydraulic grouting motors use explosion-proof motors, but also can be used safely.
4.The anti-seismic pressure gauge is installed in the oil pressure system, which can accurately reflect the working state of the pump.
5.This series of hydraulic grouting pumps can also be used as water pumps, sewage pumps and mud pumps.

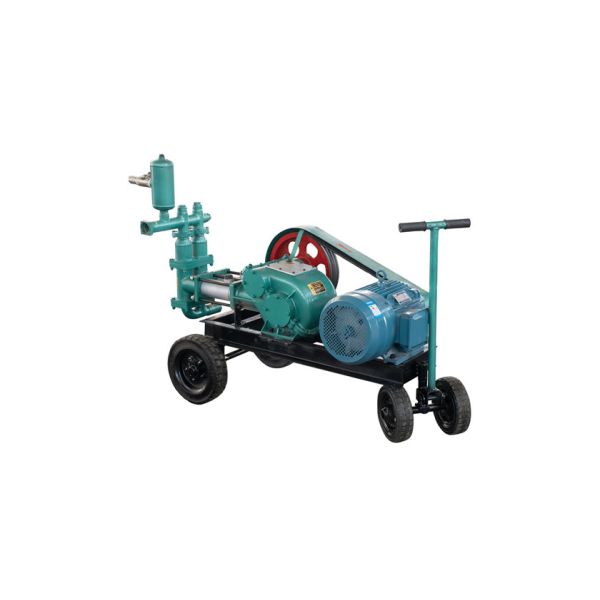

Picture of mortar grout pump:
